Understanding Inventory Template Builder

Understanding Inventory Template Builder

Understanding the components of Template Builder

The template builder is made up of various components that can be dragged and droppped on to the template.

Header and footer are available at the beginning and the end of the template. You can add them by clicking on the header or footer area and typing the required information.
By clicking on the Settings icon that appears when after you add the header or footer, you can choose if you want it to appear at the start and end of the document or whole of the document.
Using the footer option the page number of the template can be inserted. This helps in cases where the template contains many pages and helps customers keep track of the pages.

Text

When text has to be added to the template, the text components has to be dragged and dropped to the area where it is required.
The different types of text components that are available are two different heading component and one text component. The properties of these components can be changed based on your needs using the property bar that appears above the template when the component is clicked.

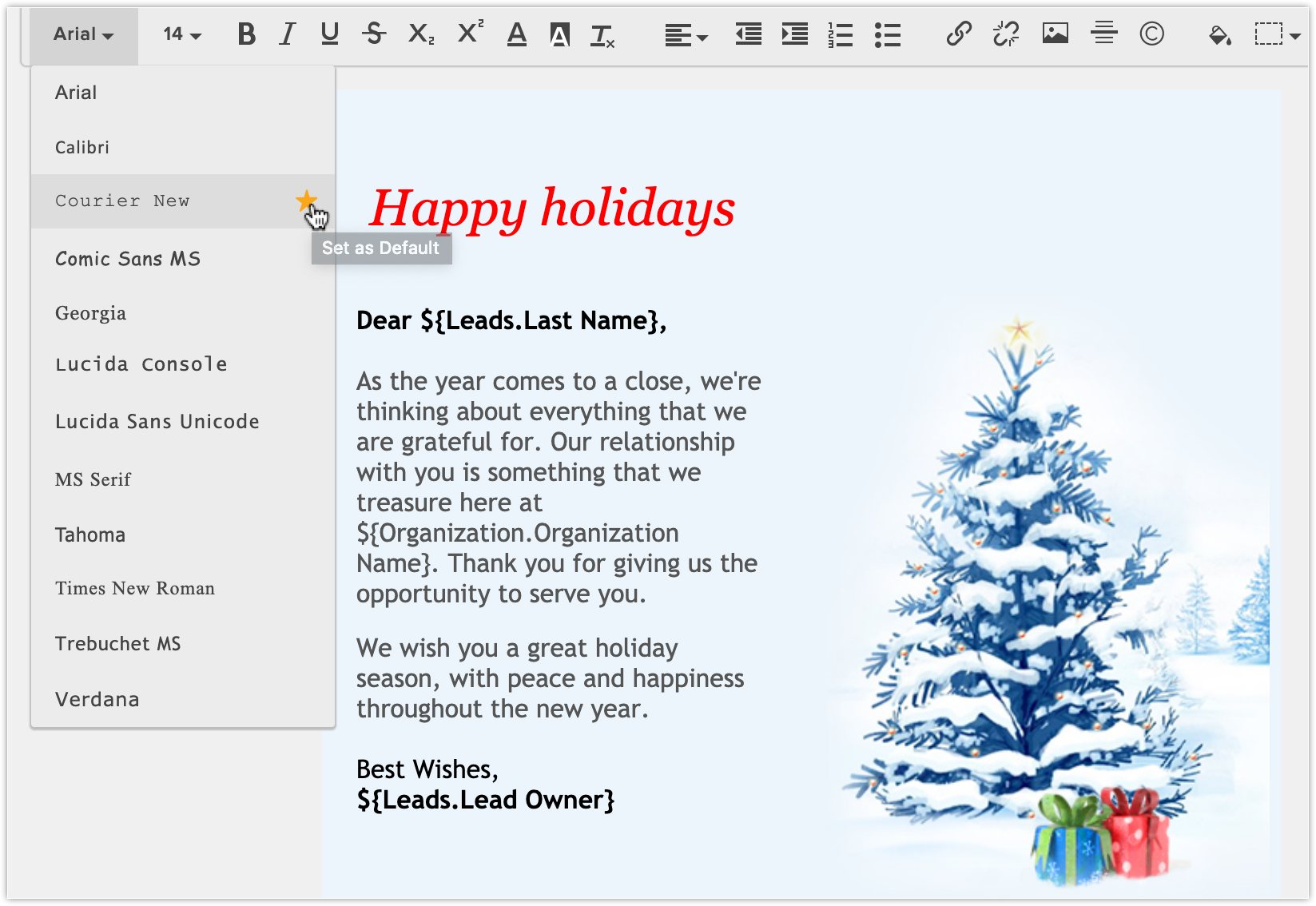

  1. Choose default font
    You can select a default font for all the email templates. This selected font will be available only for the Text and Image + Text components. You can set a font as default by clicking the Star icon next to the font name in the template builder. Note that, selecting a default font will not alter the font of the predesigned Email Templates in the Gallery.


This component is used for inserting images in the template. You can either upload an image from your computer or enter the image URL.
The three different options available for inserting images are:

  • Single image
  • Two images in a row
  • Three images in a row

After you drag and drop the image component, when you hover the mouse on the component a Change button will appear.

Click on it to insert the needed image.

Spacer

A spacer is used for improving the readability if the template. When you want to insert a blank space in the template you can make use of the spacer component.
The three default spacer components are ten, twenty and thirty point spacers. The spacer height can be adjusted by dragging the lower margin of the spacer component.

Columns

To make your template more visually appealing and to improve readability you may want to have columns in your template.
Five different column options are provided in the column component. You have columns that consist of two and three text component, one with three image components and two other components with combinations of image and text components.

Table

Product Table

A predefined product table is already available in the table component, to which customizations that are needed can be made.
The product table is made up of the merge fields that retrieve the related data.The iteration will take place automatically within the product table. If the merge fields are used in a normal table, the iteration will not take place.

Insering a table

To insert a table in your template, drag and drop the table component. This is a predefined component for creating a table from scratch. When you are creating a table from scratch, you have to provide the table property details beforehand. To create a table:

  1. Drag and drop the table component.
  2. In the Set a Table section:
    • Enter the appropriate details for the rows, columns, width and alignment.
    • Specify the header and the color of the header if needed.
    • Choose what color the rows should be in and which borders of the table are required.
Note
  1. Resize column's width for table is provided to either increase or decrease the column width by dragging the column border.
  2. Edit table rows and columns is enabled to add rows at top/bottom of any row and columns next/before of any column in an existing table.

Background

For making your template more visually appealing, you may want to add background colors to your template.
You can specify the inner colour of the template using the background component. By clicking on the inner colour component, you can choose the shade that you need from the colour palette. Alternately, you can select the colour by entering the colour hexcode in the colour palette.

Merge Fields

Merge fields are used in places where the value for that particular text keeps changing. For example, you want to add the organization name in the inventory template. In such cases, the merge field retrieves data based on the value of the merge field. Here is a list of standard merge fields.

For the list of merge fields to appear, type # in the text area and choose the merge field needed from the drop-down list.

Incase you want a specific merge field, for example the Account name to appear, type #Account and you will get the relevent merge field in the drop-down.

Note
  1. Company logo is provided as a merge tag so that it can be easily inserted where ever needed.
  2. When you use ${Quotes.Individual Tax in Perc} merge field in the inventory template, the individual tax rates that is ascribed to the product will be displayed. For example, if the sales and vat tax of a product are 5% and 2% respectively, the merge field will display the taxes individually such as: Sales Tax: 5%, Vat: 2%.

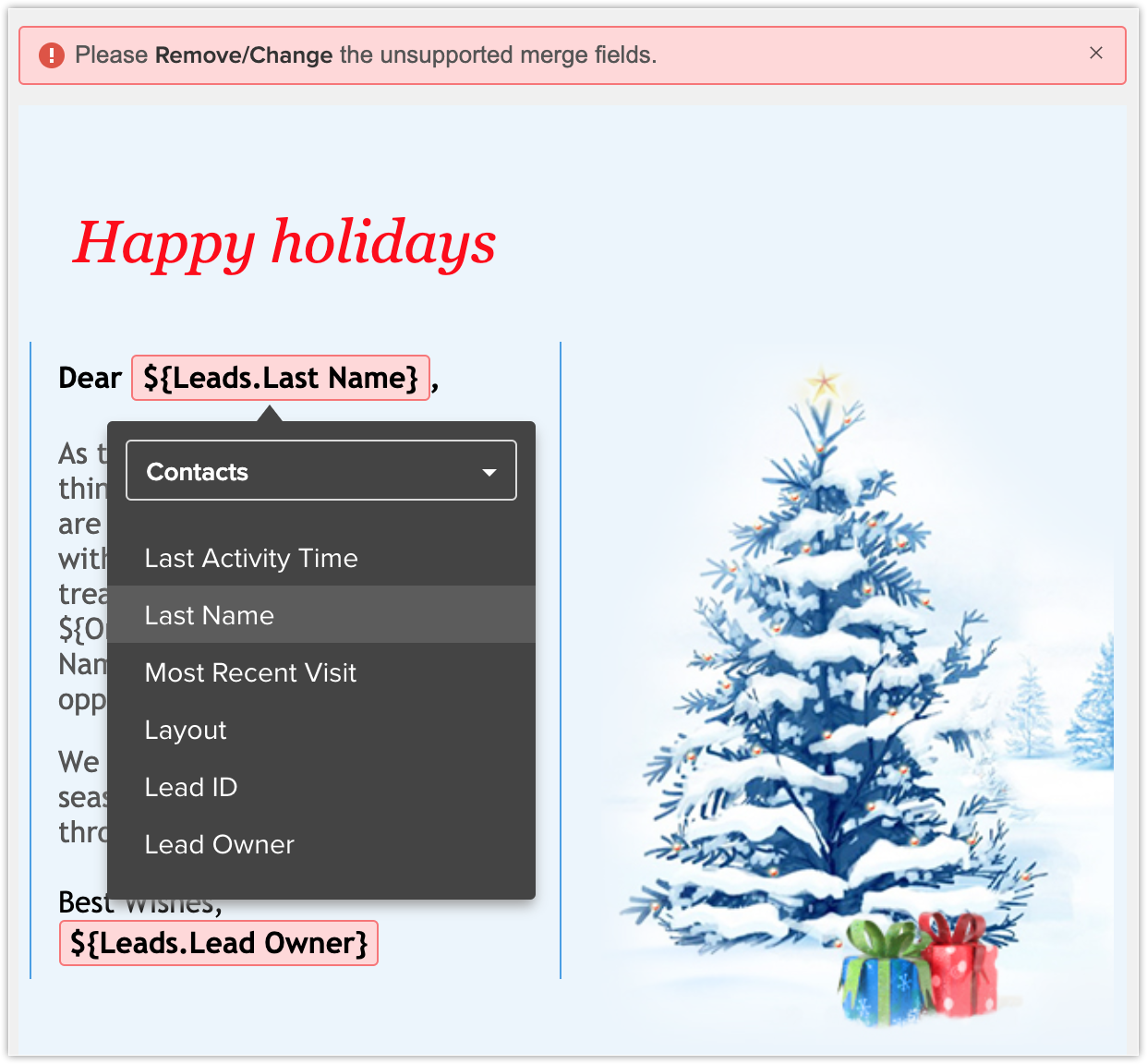

Recognize Unsupported Merge Fields

Unsupported fields are those fields that no longer exist in Zoho CRM for various reasons. These unsupported merge fields are highlighted in red. You can select and replace them with a suitable field from the drop-down list or click the Close () icon to remove the field.

Following are specific instances when merge fields get unsupported in Zoho CRM.

Custom field deleted

If your inventory template continues to have the merge field value of a deleted field, it will be listed as an unsupported merge field.

Custom fields of a look-up module deleted

If your inventory template has a merge field inserted from a [Module] lookup and then the field gets deleted, it will be listed as an unsupported merge field.

That is, assume you have a Lead-lookup in the Potentials module. An inventory template you have created for the Potentialsmodule includes a merge field value from the Leads module, populated via the look-up. Now if you delete that field from Leads, then it will be listed as an unsupported merge field.

Field not related to the selected module

If you have used a merge field that is not related to the module for which you are creating the template, then it will be listed as an unsupported merge field.

For example, if you insert the merge field value ${Leads.Lead Id} in an inventory template for the Potentials module, it will be listed as an unsupported merge field.

Integrations/Features disabled

When a feature or integration has been disabled for your account, the fields that were created as part of the integration will also not be available for the account post the deactivation. If a merge field value of such a field has been inserted in your inventory template, it will be listed as an unsupported merge field. This is applicable to the following features/integrations.

  • Google Ads Integration - Google Ads fields that are no longer available due to deactivation will not be supported in the template.
  • Visitor Tracking (Zoho SalesIQ Integration): Visitor Tracking fields that are no longer available due to deactivation will not be supported in the template.

Preview inventory templates

At times you may want to see how your template has turned out and for this purpose you can make use of the preview option.

  1. After creating or editing a template, click on Preview.
  2. In the preview page you can see the name of the template, the subject and how the template will appear when sent.
  3. Close the preview.
